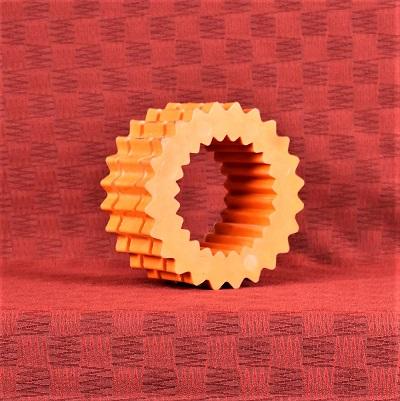

MD Flex Flyer Coupling Insert

Model: 8H-INSERT
H = Hytrel Solid Insert
Price Each: 218.21
Total Price: $218.21
Quantity:

Product Details

Type:  Solid

Size:  8S

OD Fraction:  5-1/16"

Width (in.):  2-1/2"

HP Rating:  See Data Sheet

Material:  Hytrel

Weight:  1.5

Product Files
HYtrel MD Flex Flyer Sleeves Type H sleeves , molded from Hytrel specifically for high-torque applications, will transmit four times as much power as an equivalent EPDM or Neoprene sleeve. Operating temperature range is from -65° F to + 250° F  Note: do not use a Hytrel sleeve as a replacement for EPDM or Neoprene sleeve. We recommend buying two new hubs due to the strength of the Hytrel sleeve.1 Complete coupling consists of 2 hubs & 1 insert. Sold Separately.
