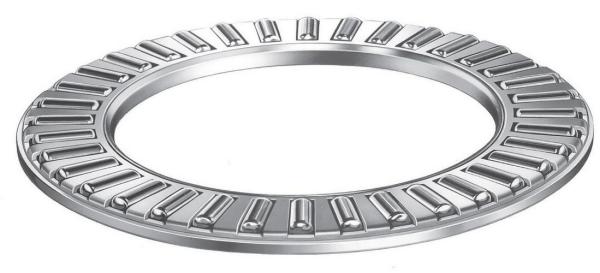

Needle Thrust Bearing NTA-512

Model: NTA-512

ID. 5/16"-0.3125 OD. 3/4"-0.750 W. 0.078

Price Each: 5.53

Total Price: $5.53

Quantity:

Product Details

Bore Fraction: 5/16"

Bore: 0.3125

OD Fraction: 3/4"

OD Decimal: 0.7500

Thickness: 0.0780

Static Load Rating: 2,510

Dynamic Load Rating: 1,050

Interchange: INA TC-512

Weight: 0.01

NTA Thrust Bearings
Identification- The prefix letters in the bearing designation of the Rainbow thrust needle roller and cage assemblies, thrust cylindrical and cage assemblies and their corresponding thrust washers are made to inch dimensions, and their major construction features.NTA is the complete prefix code for the needle bearing assembly.
Please contact our sales team if you have any questions.

Related Products

Please add a quantity to the following accessories before clicking the "Add to Quote" or "Add to Cart" to add items to your order/quote.

TRA-512
Price: $2.21

Quantity:

ID. 5/16"-0.312 OD. 3/4"-0.750 W. 0.030

TRA.030,TRB.060,TRC.090
Thrust washers of inch nominal dimensions are identified by the prefix letters TR, followed by another letter such as A, B, C etc. indicating washer thickness. TRA is the complete prefix code for .030 for the thinnest thrust washer made to inch nominal dimensions. Thrust washers of metric nominal dimensions are identified by the prefix letters. Metric thrust bearings and washers of other thickness are also available on request.
Please contact our sales team if you have any questions.

TRB-512
Price: $2.93

Quantity:

ID. 5/16"-0.312 OD. 3/4"-0.750 W. 0.060

TRA.030,TRB.060,TRC.090
Thrust washers of inch nominal dimensions are identified by the prefix letters TR, followed by another letter such as A, B, C etc. indicating washer thickness. TRA is the complete prefix code for .030 for the thinnest thrust washer made to inch nominal dimensions. Thrust washers of metric nominal dimensions are identified by the prefix letters. Metric thrust bearings and washers of other thickness are also available on request.
Please contact our sales team if you have any questions.

TRC-512
Price: $4.09

Quantity:

ID. 5/16"-0.312 OD. 3/4"-0.750 W. 0.090

TRA.030,TRB.060,TRC.090
Thrust washers of inch nominal dimensions are identified by the prefix letters TR, followed by another letter such as A, B, C etc. indicating washer thickness. TRA is the complete prefix code for .030 for the thinnest thrust washer made to inch nominal dimensions. Thrust washers of metric nominal dimensions are identified by the prefix letters. Metric thrust bearings and washers of other thickness are also available on request.
Please contact our sales team if you have any questions.
