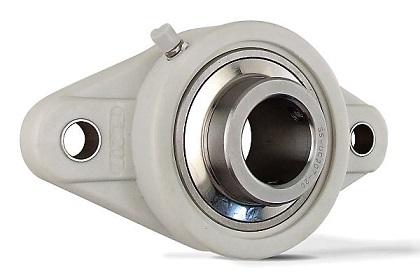

Thermoplastic 2B Flange Bearings

Thermoplastic Mounted Units all provided with Stainless Steel Insert Bearings set screw locking extended inner ring type.
  • Corrosion resistant mounted units.
  • Food grade grease
  • Washdown Duty
  • End Caps Available for all styles.
  • Contact us for pricing and availabilty
Bore Fraction: 1/2"
Bore: 0.5000
Mounting Hole Center: 3.0000
Bolt Hole Diameter: 5/16"
Length Through Bore: 1.3120
Enclosure: Sealed
RFQ Only
Quantity: Add To Quote
Bore Fraction: 5/8"
Bore: 0.6250
Mounting Hole Center: 3.0000
Bolt Hole Diameter: 5/16"
Length Through Bore: 1.3120
Enclosure: Sealed
RFQ Only
Quantity: Add To Quote
Bore Fraction: 3/4"
Bore: 0.7500
Mounting Hole Center: 3.5310
Bolt Hole Diameter: 5/16"
Length Through Bore: 1.3120
Enclosure: Sealed
RFQ Only
Quantity: Add To Quote
Bore Fraction: 1/2"
Bore: 0.5000
Mounting Hole Center: 3.5310
Bolt Hole Diameter: 5/16"
Length Through Bore: 1.3120
Enclosure: Sealed
RFQ Only
Quantity: Add To Quote
Bore Fraction: 1-1/2"
Bore: 0.8750
Mounting Hole Center: 3.8900
Bolt Hole Diameter: 3/8"
Length Through Bore: 1.4060
Enclosure: Sealed
RFQ Only
Quantity: Add To Quote
Bore Fraction: 1"
Bore: 1.0000
Mounting Hole Center: 3.8900
Bolt Hole Diameter: 3/8"
Length Through Bore: 1.4060
Enclosure: Sealed
RFQ Only
Quantity: Add To Quote
Bore Fraction: 1-1/8"
Bore: 1.1250
Mounting Hole Center: 4.5930
Bolt Hole Diameter: 3/8"
Length Through Bore: 1.5940
Enclosure: Sealed
RFQ Only
Quantity: Add To Quote
Bore Fraction: 1-3/16"
Bore: 1.1875
Mounting Hole Center: 4.5930
Bolt Hole Diameter: 3/8"
Length Through Bore: 1.5940
Enclosure: Sealed
RFQ Only
Quantity: Add To Quote
Bore Fraction: 1-1/4"
Bore: 1.2500
Mounting Hole Center: 4.5930
Bolt Hole Diameter: 3/8"
Length Through Bore: 1.5940
Enclosure: Sealed
RFQ Only
Quantity: Add To Quote
Bore Fraction: 1-1/4"
Bore: 1.2500
Mounting Hole Center: 5.1250
Bolt Hole Diameter: 7/16"
Length Through Bore: 1.7500
Enclosure: Sealed
RFQ Only
Quantity: Add To Quote
Bore Fraction: 1-5/16"
Bore: 1.3125
Mounting Hole Center: 5.1250
Bolt Hole Diameter: 7/16"
Length Through Bore: 1.7500
Enclosure: Sealed
RFQ Only
Quantity: Add To Quote
Bore Fraction: 1-3/8"
Bore: 1.3750
Mounting Hole Center: 5.1250
Bolt Hole Diameter: 7/16"
Length Through Bore: 1.7500
Enclosure: Sealed
RFQ Only
Quantity: Add To Quote
Bore Fraction: 1-7/16"
Bore: 1.4375
Mounting Hole Center: 5.1250
Bolt Hole Diameter: 7/16"
Length Through Bore: 1.7500
Enclosure: Sealed
RFQ Only
Quantity: Add To Quote
Bore Fraction: 1-1/2"
Bore: 1.5000
Mounting Hole Center: 5.6560
Bolt Hole Diameter: 7/16"
Length Through Bore: 2.0000
Enclosure: Sealed
RFQ Only
Quantity: Add To Quote
Bore Fraction: 1-11/16"
Bore: 1.6875
Mounting Hole Center: 5.8430
Bolt Hole Diameter: 1/2"
Length Through Bore: 2.0620
Enclosure: Sealed
RFQ Only
Quantity: Add To Quote
Bore Fraction: 1-3/4"
Bore: 1.7500
Mounting Hole Center: 5.8430
Bolt Hole Diameter: 1/2"
Length Through Bore: 2.0620
Enclosure: Sealed
RFQ Only
Quantity: Add To Quote
Bore Fraction: 1-15/16"
Bore: 1.9375
Mounting Hole Center: 6.1875
Bolt Hole Diameter: 1/2"
Length Through Bore: 2.1560
Enclosure: Sealed
RFQ Only
Quantity: Add To Quote
