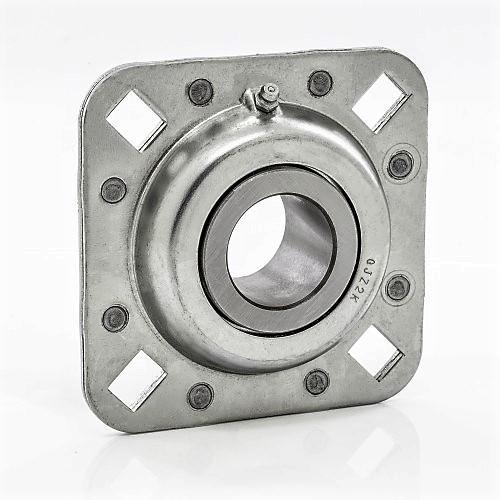

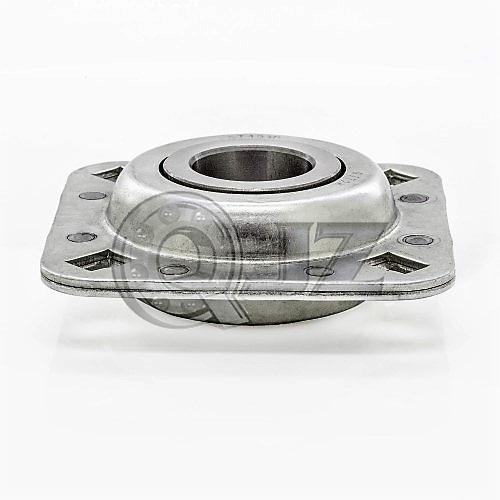

FLANGE DISK UNIT

Model: ST740
Disk Harrow Flange Round Bore
Price Each: Call for Availability
Quantity:

Product Details

Manufacture:  IMPORT

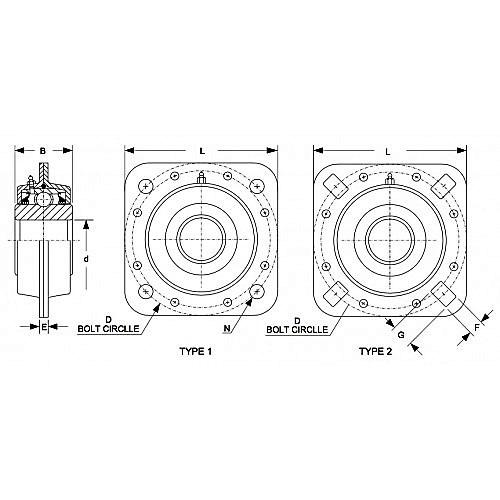

Type:  2

Round Bore:  2.1250

Flange O.D.:  5.5000

Flange O.D. MM:  139.7000

Length Through Bore:  2.1870

Bolt Hole:  Rectangle

Bolt Circle:  5.5000

Housing Material:  Stamped Steel Zinc Plate

Bolt Hole Rectangle:  19/32" -17/32"

Interchange:  Peer ST740

Weight:  3.5


  • Dynamic alignment capability
  • Shroud effect from close clearance of stamping to the inner ring.
  • Relubrication
  • Stampings are case hardened to minimize wear.
  • Units are equipped with nylon retainer, moulded one -piece seals and patented notched outer ring seal grooves.
