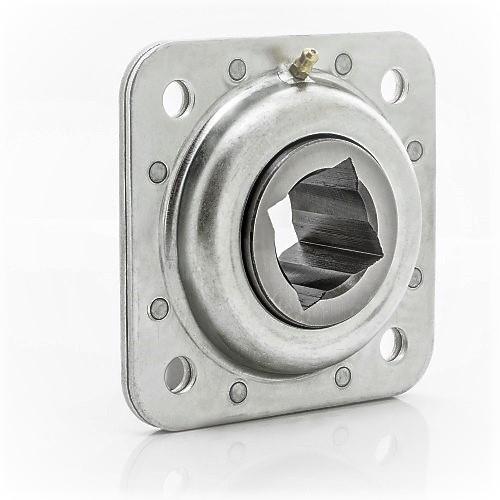

FLANGE DISK UNIT

Model: FD211RP
Disk Harrow Flange Square Bore
Price Each: Call for Availability
Quantity:

Product Details

Manufacture:  IMPORT

Type:  1

Square Bore:  1.6142

Square Bore MM:  41.0000

Flange O.D.:  5.5000

Flange O.D. MM:  139.7000

Length Through Bore:  2.1890

Bolt Hole:  Round

Bolt Hole Diameter:  .5315

Bolt Circle:  5.5000

Housing Material:  Stamped Steel Zinc Plate

Interchange:  BCA FD211RM, DHU 1 1/2S-211, PEER211-1 1/2SQ

Weight:  2.26


  • Dynamic alignment capability
  • Shroud effect from close clearance of stamping to the inner ring.
  • Relubrication
  • Stampings are case hardened to minimize wear.
  • Units are equipped with nylon retainer, moulded one -piece seals and patented notched outer ring seal grooves.
