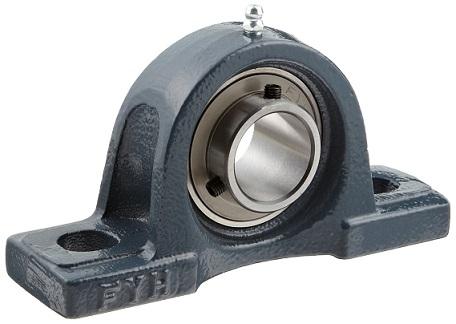

FYH 1-1/8" Pillow Block Bearing

Model: UCP206-18
1-1/8" Shaft Pillow Block Bearing UCP
Price Each: 34.44
Total Price: $34.44
Quantity:

Product Details

Manufacture:  FYH

Shaft Size:  1-1/8"

Bore:  1.1250

Bearing Type:  Ball

Enclosure:  Sealed

Locking Device:  Setscrew Locking

Bearing Insert:  UC206-18

Length Through Bore:  1.5000

Minimum Bolt Hole Spacing:  4-7/16"

Maximum Bolt Hole Spacing:  5-1/16"

Recommended Bolt:  1/2"

Dynamic Load Rating:  3,350

Housing Material:  Cast Iron

Interchange:  SEALMASTER NP18, DODGE 123808, P2B-SC-102, FAFNIR YAS 1-1/8

Weight:  2.8700

Product Files
We offer FYH, AMI, UCP Pillow Blocks, also known as a plummer block or housed bearing units have 2 set screws to lock down on the desired shaft. The bearing is mounted in a cast iron pedestal housing used to provide support for a rotating shaft. FYH & AMI is highest quality japanese bearings in industry today. Housing material for a pillow block is typically made of cast iron or cast steel. We also sell Dodge, SKF, Fafnir, Linkbelt, Moline, Hub City and more.
